Creating Sound Waves with a Tuning Fork

Grade Level: 3rd – 11th
Time Required: 1 Hour
NDT Focus Area: Ultrasonic Testing (UT)

Students will explore the connection between sound and vibrations by using tuning forks to conduct simple experiments.

Download Handout

Learning Objectives

By the end of this activity, students will be able to:

  • Describe the relationship between sound and vibrations.

  • Observe how vibrations of a tuning fork create sound waves.

  • Demonstrate how vibrations can be transmitted into other media, such as water.

  • Relate tuning fork vibrations to ultrasonic testing methods in NDT.

Key Concepts

  • A tuning fork is an all-metal device that has a handle and two prongs, known as tines. When you strike it against a soft surface—like the bottom of a shoe or the palm of your hand—the tines vibrate back and forth several hundred times per second. The vibrations are usually so fast that you can only see it in slow motion.

  • The tuning fork’s vibrations interact with the surrounding air to create sound. As the tines move back and forth at tremendous speeds, the vibrations press air molecules together (forming compressions) and force them apart (forming rarefactions).

  • Together, a collection of compressions and rarefactions form a sound wave. Once a sound wave enters your ear canal and vibrates your eardrum, your brain interprets the vibrations as sound.

  • In ultrasonic testing, different types of sound waves are better suited to different materials, or to find specific types of discontinuities. The higher the frequency, the smaller the discontinuities that can be found; but, by increasing the sensitivity, penetration ability is decreased, meaning the sound waves cannot travel as deeply into a material to find discontinuities.

Vocabulary

Here are some key terms you will need to know to support your understanding during the experiment.

Tuning Fork

A metal device with two prongs (tines) that vibrate when struck, producing sound.

Vibration

Repeated back-and-forth motion that produces sound.

Compression

Region in a sound wave where air molecules are close together.

Rarefaction

Region in a sound wave where air molecules are spread apart.

Ultrasonic Testing

Use of high-frequency sound waves to detect flaws in materials.

Frequency

How many vibrations occur per second, influencing pitch.

Amplitude

The strength of a wave, influencing loudness.

Ultrasonic Waves

High-frequency sound waves used in nondestructive testing.

Materials Needed

Before you start, collect the following items for the experiment.

Tuning fork

Large bowl of water

Rubber mallet

or another soft surface

Paper towels

Experiment Procedure

Follow these steps one at a time to carry out the experiment. Read carefully and take your time to make sure you complete each part safely and correctly.

Strike the tuning fork with a mallet, block of wood, heel of the hand, or shoe bottom.

  • Describe the sound: loud or soft? High pitch or low pitch?

Stop the vibrations by touching the tuning fork with your hand.

A person in a green sweater holds a tuning fork over their palm, striking their hand.

Place a large bowl of water on a paper towel.

Strike the tuning fork again and gently place it on the surface of the water (not submerged).

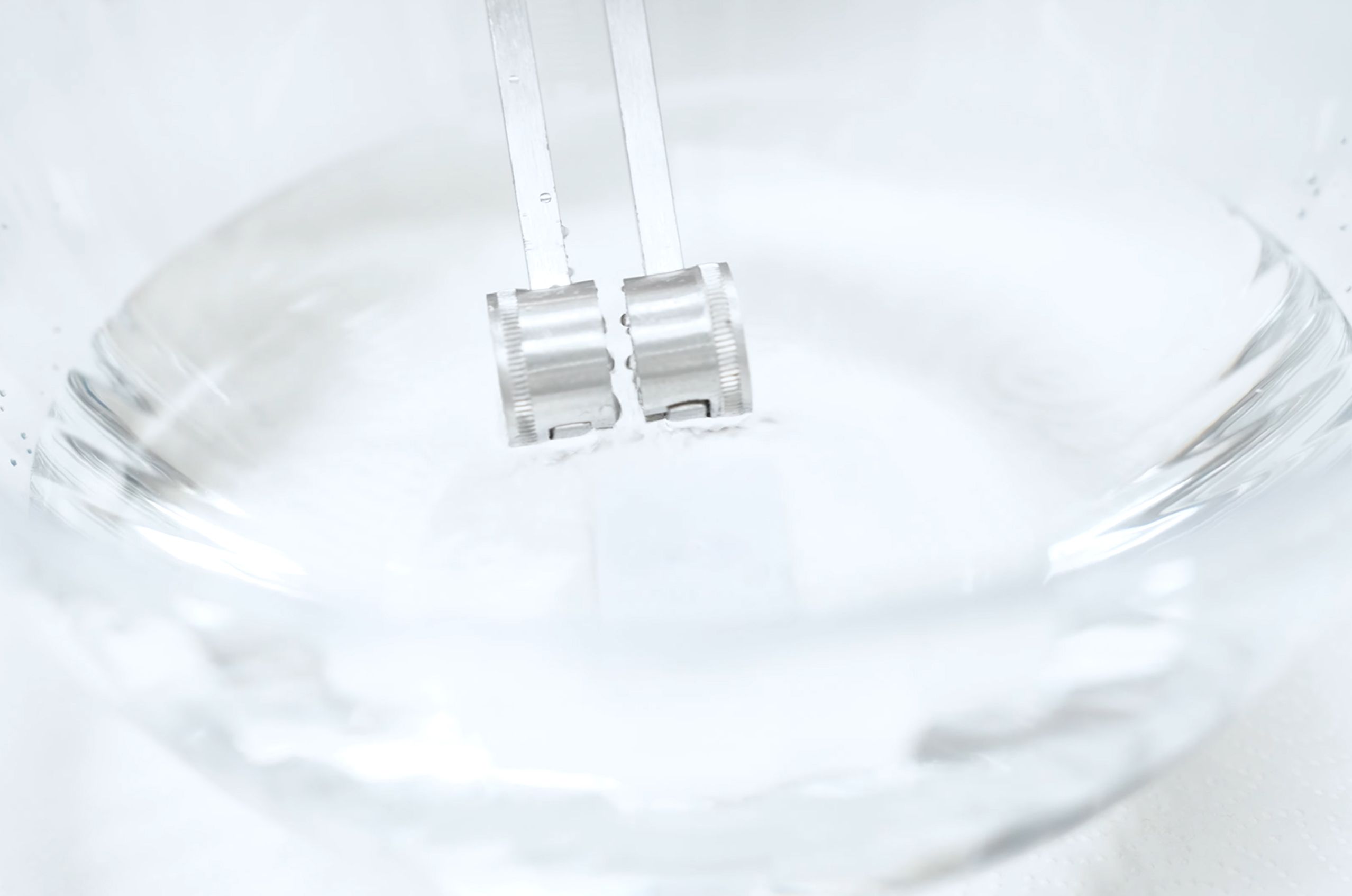

Close-up of water with two metal prongs of a tuning fork partially submerged, creating waves in the water.

Expected Observations

The vibrating tuning fork produces sound.

When placed on water, vibrations create waves that spread across the surface.

Real-World Connection:
NDT and Ultrasonic Testing

NDT professionals use sound and vibrations to identify defects. Just as a tuning fork’s vibrations transmit through water, ultrasonic sound waves travel through materials and reflect off discontinuities. The time it takes for echoes to return reveals the location of a flaw, while the amplitude shows its size. Higher frequencies detect smaller flaws but cannot penetrate as deeply.

Learn More About Ultrasonic Testing
A technician performing an ultrasonic testing inspection on a large welded pipe. The technician is using a handheld transducer connected to a portable ultrasonic testing device with a screen displaying data. The setting appears to be outdoors, with industrial structures visible in the blurred background.

Apply What You've Learned

  • Define vibrations in your own words.

  • Draw a diagram showing how a tuning fork produces sound waves.

  • Explain what happens when the tuning fork touches water.

  • Relate how ultrasonic testing uses sound waves to detect flaws in materials.
